Cervico Guide
Cervico Guide assists in the fabrication of custom healing abutments. It is a re-usable and autoclavable, multi-use tool. The guide is an accurate, easy and fast intra-oral way of identifying the correct size and shape of the cervico healing abutment needed for the patient.
How it works

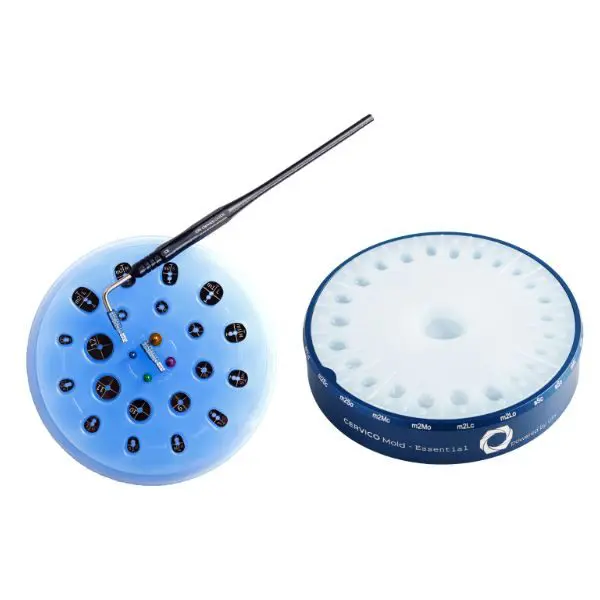

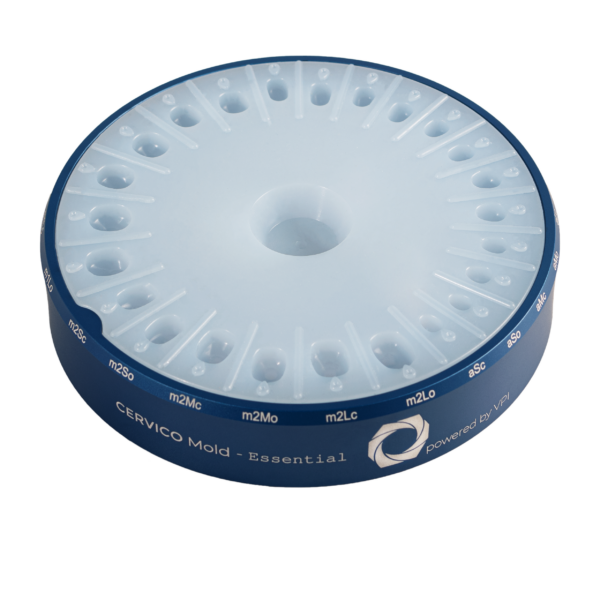

By simply evaluating the prosthetic space with the tab connected to the handle the clinician can identify, and therefore correlate, which size and shape cervico abutment needs to be prepared. The cervical tab of the guide with coding(pS) corresponds to the well of the mold with (pS) coding, etc.
This tool can also be used as a surgical guide for the proper positioning of the implant osteotomy.
Orientation T line of the cervical tabs, serve as reference for correct orientation of the prosthetic connection of the implant in space. This will allow proper orientation of the cervico abutment once coupled with the implant.
Implant companies utilise orientation markers on their implant carriers to allow proper control of implant prosthetic connection orientation in space. Orient these markers towards the T-line. E.g:
External Hex or Internal Hex or Octagon or Square Connections: Flat seat of connection (or implant carrier) parallel to the T-line
Trilobe Connections: Vertex of connection pointing towards the T-Line
Grove/Locks Connections: Orientation markers of implant carrier pointing towards the T-line
